The specialists for environmental technology

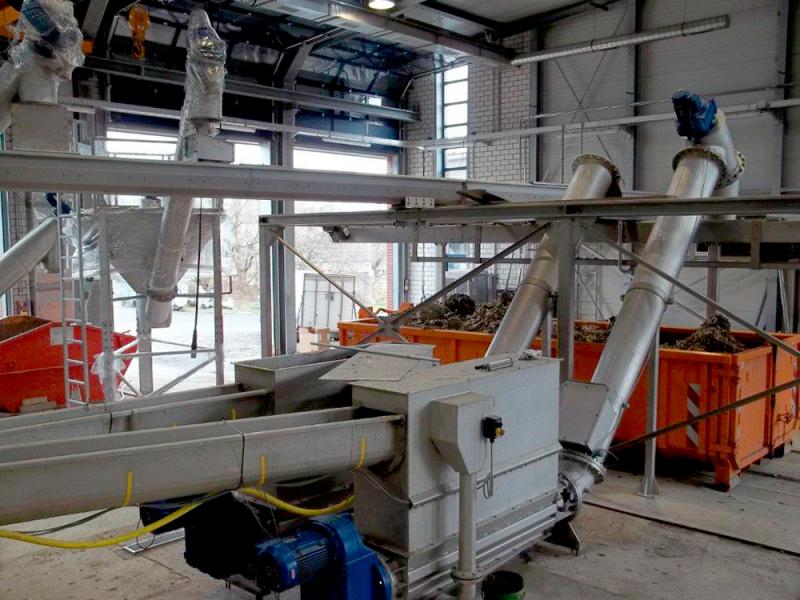

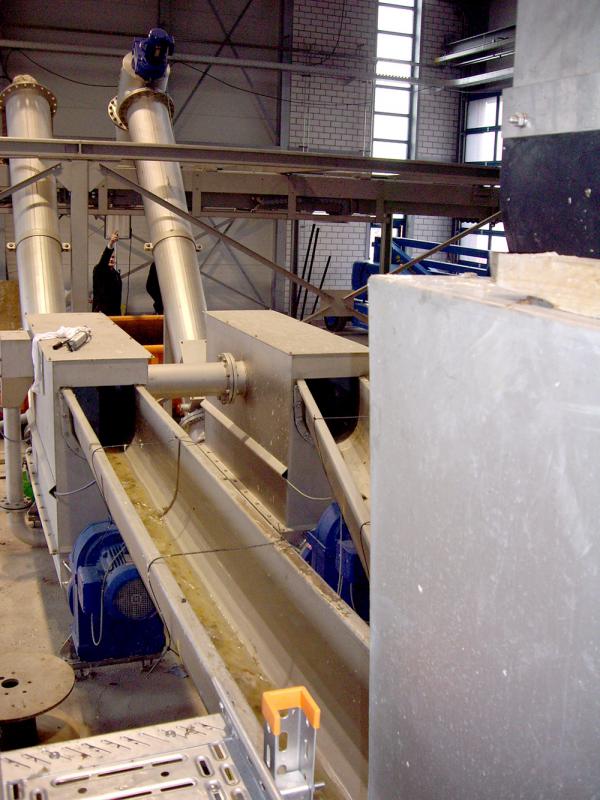

The FSM launder trough is used for  the hygienic, low-wear conveyance of screenings. Launder troughs provide high performance combined with low operating costs.

Functional principle:
Screenings are conveyed from a screening unit to the trough of the launder unit. Flushing water is introduced at the end of the trough, which flushes the screenings to the wash compactor. The flushing water can be drawn off by a pump behind the screening unit or taken from an industrial water supply network. An arch can be installed to protect downstream machinery from damage.
Larger wooden screenings, for example, are thus retained and can be easily removed.

Features:
• High reliability through robust construction
• Wearless because of no moving parts
• Made completely of stainless steel.
• Machine completely hygienically encapsulated
• Easily adapted to suit in existing plants
• Conveying over long distance possible
• Excellent cost/performance ratio
• Low maintenance costs
• Suitable for outdoor sites/operation in winter


Dimensions:

Diameter  200 mm / 300 mm / 400 mm, other sizes on request
Length  up to 30 m
Capacity  on request


Material/make:

machine frame  stainless steel SS304 or SS316, other materials on request
covers/inlet hopper  stainless steel SS304 or SS316, other materials on request
wear liner  HDPE, stainless steel SS304 or SS316, other materials on request
